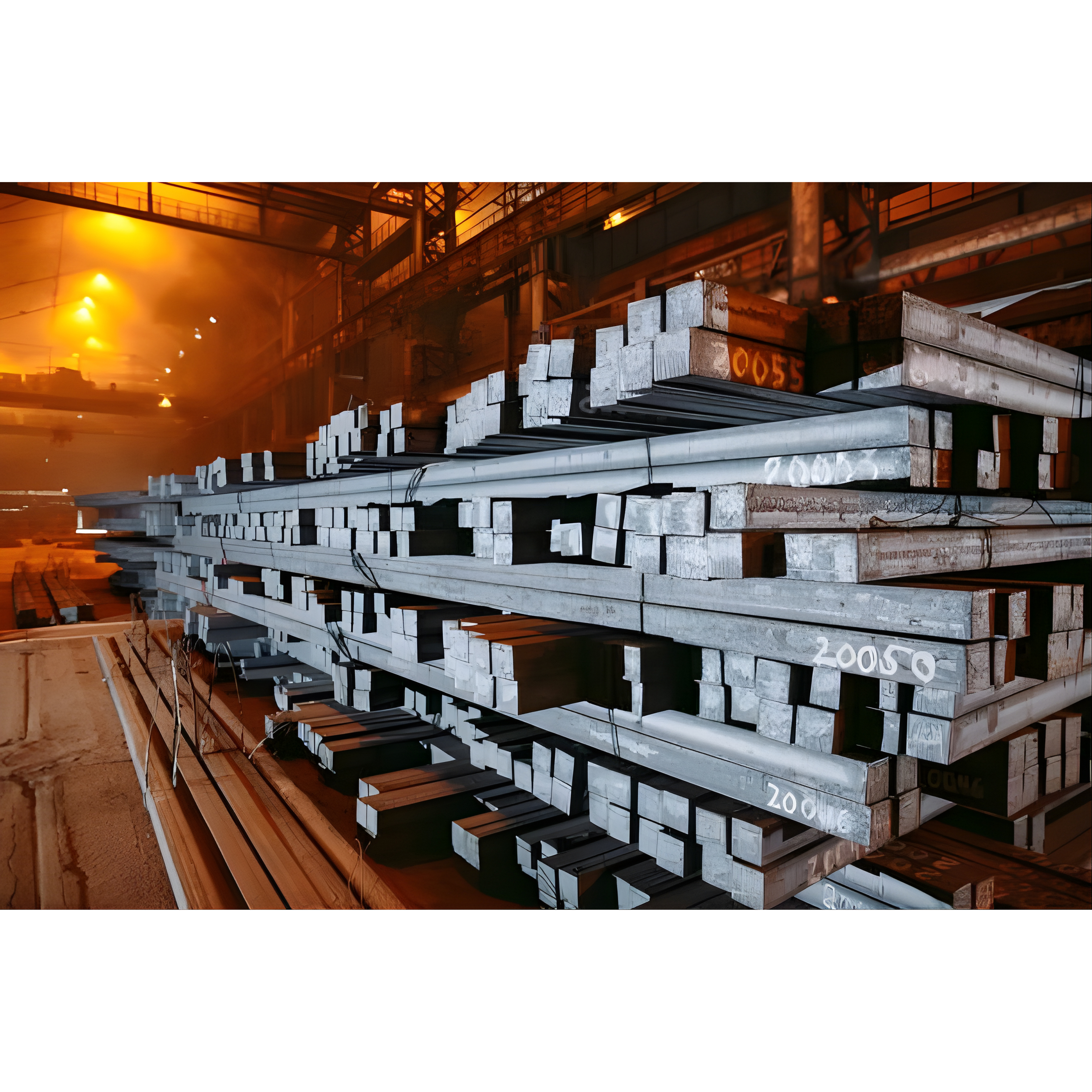

Steel Billets
Our steel billets are produced using an advanced Continuous Casting Machine (CCM), ensuring uniform density, consistent chemical composition, and superior metallurgical quality. Billets serve as the primary feedstock for re-rolling into deformed bars and structural sections.
Custom cross-sections and lengths are available based on client specifications.

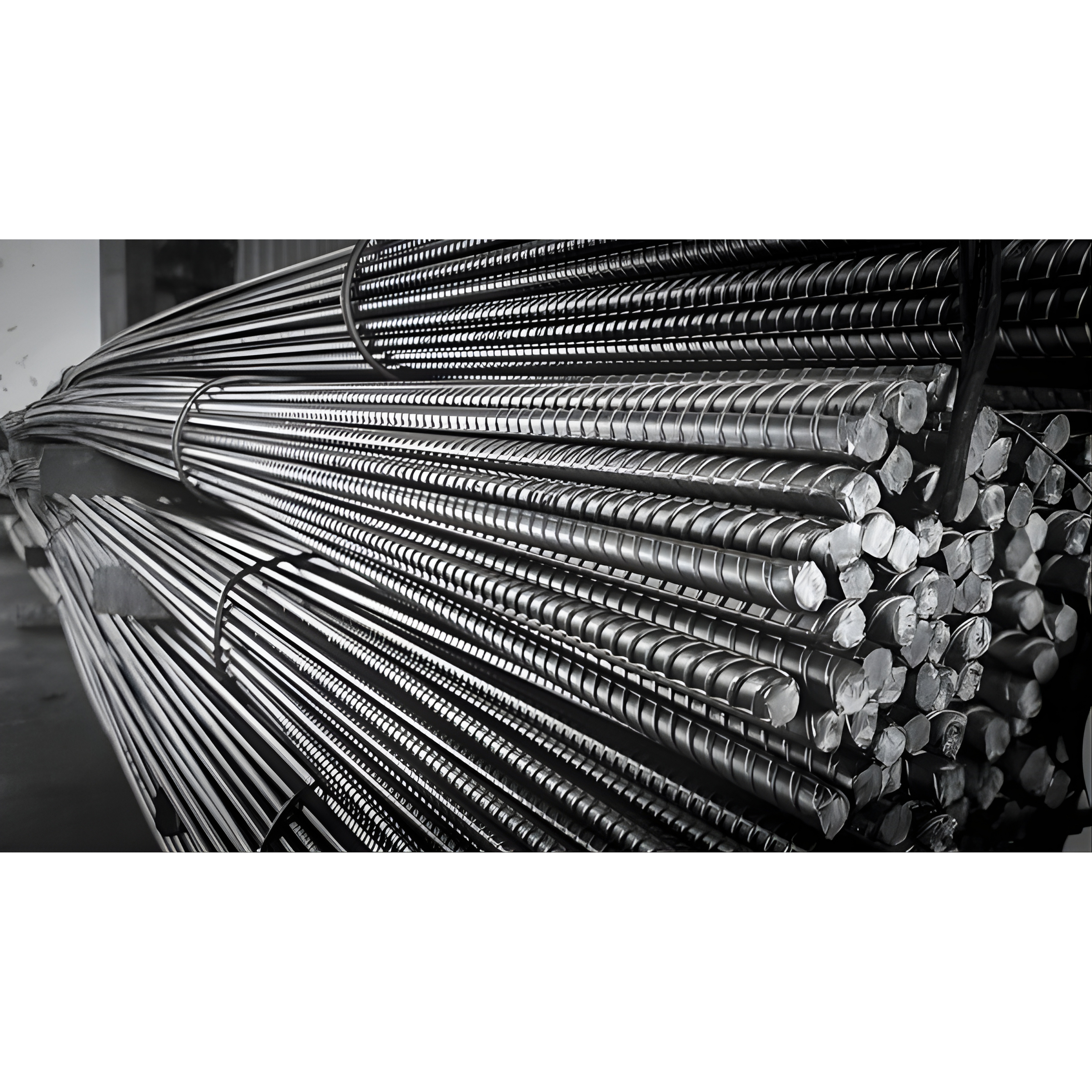

Deformed Bar (Rebar)
HKG deformed bars are manufactured through a controlled hot-rolling and Quenching & Tempering (Q&T) process, producing high-strength, ductile bars suitable for reinforced concrete structures — including seismic applications.
With a minimum yield strength of 500 MPa (72,500 PSI), our bars comply with multiple international standards including BDS ISO 6935, BS 4449, DIN 488, JIS 3112, and ASTM A-615.
Grade Reference Table
| Grade | Yield Strength | Tensile Strength | Elongation | Applicable Standards |
|---|---|---|---|---|
| Grade 500W | 500 MPa | 575 MPa | 14% | BDS ISO 6935, BS 4449, DIN 488, JIS 3112 |
| Grade 60/400 | 420 MPa | 620 MPa | 9% | ASTM A-615 |
Deformed Bar Weight Reference
All sizes 8mm to 32mm — weights, cross-sections, and metres per tonne
| Diameter | Weight / Metre | Cross Section | Length per Tonne |
|---|---|---|---|
| 8 mm | 0.395 kg/m | 50.3 mm² | 2,532 m |
| 10 mm | 0.617 kg/m | 78.5 mm² | 1,621 m |
| 12 mm | 0.888 kg/m | 113.1 mm² | 1,126 m |
| 16 mm | 1.578 kg/m | 201.1 mm² | 634 m |
| 20 mm | 2.466 kg/m | 314.2 mm² | 406 m |
| 22 mm | 2.984 kg/m | 380.1 mm² | 335 m |
| 25 mm | 3.854 kg/m | 490.9 mm² | 259 m |
| 28 mm | 4.834 kg/m | 615.8 mm² | 207 m |
| 32 mm | 6.313 kg/m | 804.2 mm² | 158 m |
